Convenience Kits 95kPa Specimen Collection Kit ICAO Packaging

Description

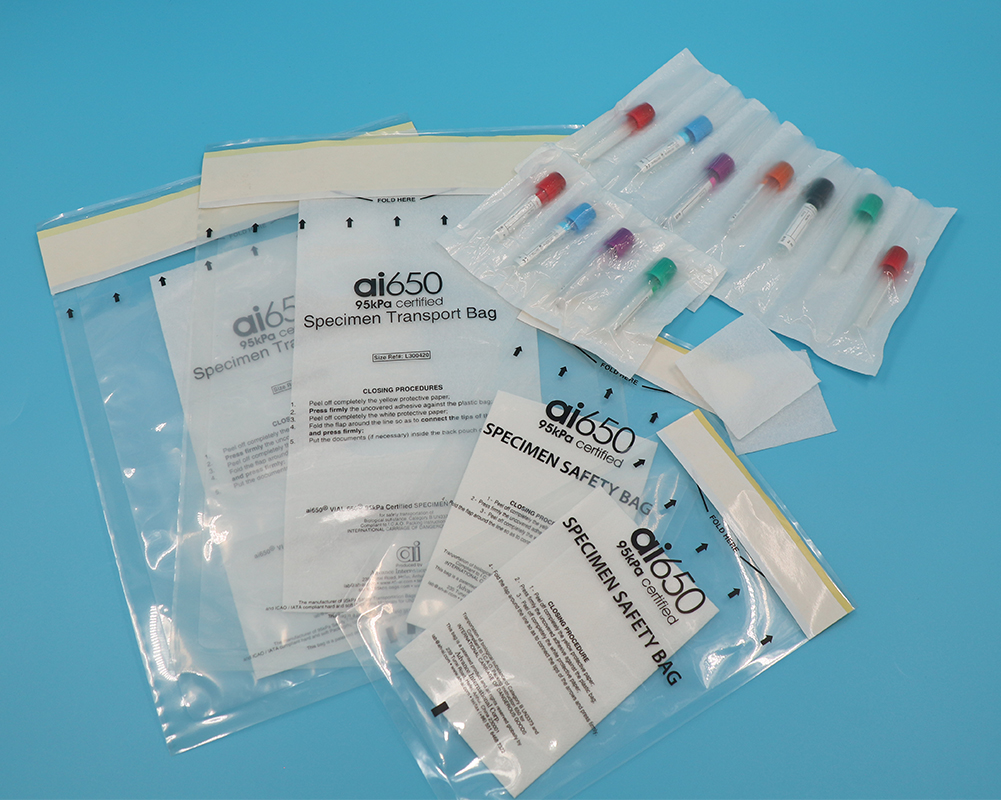

The 95kPa AI650 liquid-tight specimen transport bag is designed to withstand, without leakage 95kPa which meet IATA requirements for shipping hazardous liquids on air transport. All 95kPa bags are made with a custom film structure that features a strong adhesive closure and continuous seal, which makes it ideal for critical liquid and substance containment.

PRICE : Negotiate

Bulk pricing is automatically applied for orders of 5 or more.

Detailed Description

1. Qualifications

The ai650® 95kPa Biohazard Specimen Transportation Bag are qualified to withstand the requirement of ICAO Packaging Instruction 650 and the CFR 49, Parts 100 to 195 and thus ensure the safety during the Transportation of Dangerous Goods or Biohazard Materials by Air.

2. General Description

The ai650® 95kPa Biohazard Specimen Transportation Bag is a patented product of Advance International.

The bags were developed for carriage of dangerous or biohazard substances in conditions of the inside/outside pressure differential of not less than 95kPa. Also the sealed bag with dangerous materials inside can withstands a temperate in between -40°C and +55°C (or between -40°F and +131°F).

Each of the bag have a absorbent pocket sleeve inside which is capable of holding 7 cryogenic vials and with a absorbency of minimum 200ml of distilled water.

The bags can be produced in our brand name or ai650 ® or in OEM brands or customized labels of customers.

 Features and facts

eaturesFacts
AppearanceWhite paper + see-through poly film
Size of the 4 slotted pocket sleeve (4 bay sleeve)L 191 x W 170 mm (+/-5mm)
Internal Size of each bayL 150mm x W 40mm (+/-1mm)
Maximum diameter of the tube that each bay can accommodateOD 25mm
Minimum Absorbent Capacity (by normal saline, 25 ºC)320 ml
Packing2400 sleeves per outer carton
Humidity RangeKeep in a cool and dry place
Sunlight EffectKeep away from direct sunlight or fluorescent light

1.Our 95 kPa bags satisfy supplementary packaging requirements in the IATA DG Regulations (5.0.2.9.4). These bags are designed to be used with inner packaging containing liquids that, in themselves, do no comply with 95 kPa pressure requirements. When a 95 kPa bag is used in conjunction with each inner packaging containing liquid, the assembled UN package is eligible to be transported by air (IATA DGR packaging instructions must also be followed to ensure compliance). Our pressure bags also double as a barrier between intermediate packaging (ie. vermiculite or other absorbent) and inner containers in 4GV UN Boxes. Browse our various sizes belo When you need a shipping option that can withstand temperature and pressure changes without leaking, then our 95kPa Pressure Bags may be the best option. This bag is designed to withstand, without leakage, an internal pressure which produces a pressure differential of not less than 95kPa. The patented VonSeal® liquid tight bag has passed the tests as outlined in 173.196(f) of the DOT’s Title 49 CFR and as outlined in Packing Instructions 602 and 650 of the 2001-02 ICAO Technical Instructions for the Safe Transport of Dangerous Goods by Air.

2.These pressure bags are made with a custom film structure that features a strong adhesive closure and continuous seal, which makes it ideal for critical liquid and substance containment. The permanent adhesive closure withstands a temperature range of -40⁰C up to +55⁰C (-40⁰F up to +130⁰F).

3.Take the guesswork out of packaging, protecting and shipping four inner containers of your hazmat materials in one box with AI 650’s 4GV Packaging Kits. These UN-certified, Variation Two shippers are suitable for shipping hazardous liquids or solids in Packing Groups I, II and III by any mode of transportation. They can accommodate your own glass or plastic bottles which must pass hydrostatic pressure tests to meet ISTA Procedure 1A when shipping by air. These kits include everything you need to protect your containers’ internal contents, such as absorbent pouches, fiberboard insert, fiberboard pads, ties, pressure-sensitive tape and a 4GV corrugated outer box. Available in two sizes, you can ship either four 8-oz. or four 1L containers. Save yourself time and avoid packaging errors and compliance issues when shipping four inner containers of hazardous materials by using one of these all-inclusive 4GV packaging kits.

4.It is suitable for transport packaging of pipes, bottles, containers or some samples with potential infectious sources to the laboratory. This series of products received 95KPa pressure and leakage test in the temperature range of -40 ° C to +50 ° C;

5.Specimen transport bags are liquid tight and tamper evident. The patented adhesive closure and continuous seal meet or exceed standards of all major air carriers and DOT. Polyethylene construction and adhesive closure provides added security during handling by personnel.

6.How to Close The Shipping Bag Properly
Specimen shipping bags in this carton are designed to perform at high internal pressure, should an airliner lose its cabin pressure. So, in order for the bag to be effective and perform to its design capabilities, the bag must be closed properly after insertion of the specimen
×
